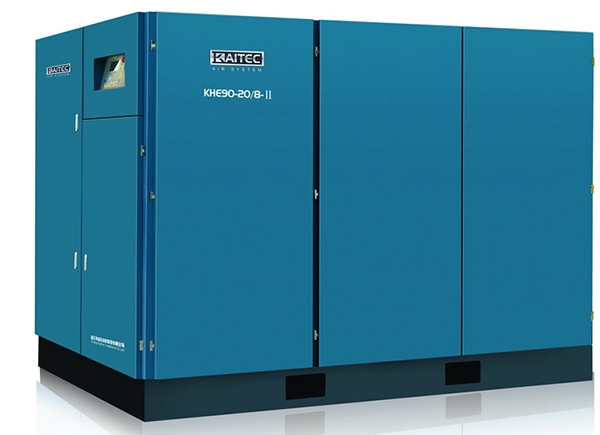

KAITEC两级压缩常压系列螺杆空气压缩机
产品简介：
国内首创，两级压缩常压螺杆空气压缩机。
排气压力：0.6-1.3Mpa，排气量：16.00 -70.00m3/min，电机功率范围：75-355 kW
| 型号Model | 排气压力 | 排气量 | 电机功率 | 排气 接口 | 重量 kg | 外型尺寸 | ||
| MPa | psi | m³/min | CFM | kW | mm | |||
| KHE75-18/6-Ⅱ | 0.6 | 87 | 18 | 635 | 75 | DN65 | 3300 | 2560x1620x1920 |
| KHE75-18/7-Ⅱ | 0.7 | 101 | 18 | 635 | ||||
| KHE75-16/8-Ⅱ | 0.8 | 116 | 16 | 565 | ||||
| KHE90-23/6-Ⅱ | 0.6 | 87 | 23 | 812 | 90 | DN65 | 3400 | 2560x1620x1920 |
| KHE90-21/7-Ⅱ | 0.7 | 101 | 21 | 742 | ||||
| KHE90-20/8-Ⅱ | 0.8 | 116 | 20 | 706 | ||||
| KHE90-18/10-Ⅱ | 1 | 145 | 17.5 | 618 | ||||
| KHE90-16/13-Ⅱ | 1.3 | 188 | 16 | 565 | ||||
| KHE110-26/6-Ⅱ | 0.6 | 87 | 26 | 918 | 110 | DN65 | 4650 | 3110x1790x2070 |
| KHE110-26/7-Ⅱ | 0.7 | 101 | 26 | 918 | ||||
| KHE110-24/8-Ⅱ | 0.8 | 116 | 24 | 848 | ||||
| KHE110-20/10-Ⅱ | 1 | 145 | 20 | 706 | ||||
| KHE110-19/13-Ⅱ | 1.3 | 188 | 19 | 670 | ||||
| KHE132-34/6-Ⅱ | 0.6 | 87 | 34 | 1200 | 132 | DN80 | 5100 | 3200x1880x2070 |
| KHE132-32/7-Ⅱ | 0.7 | 101 | 32 | 1130 | ||||
| KHE132-28/8-Ⅱ | 0.8 | 116 | 28 | 989 | DN65 | 4800 | 3110x1790x2070 | |
| KHE132-24/10-Ⅱ | 1 | 145 | 24 | 812 | ||||
| KHE132-21/13-Ⅱ | 1.3 | 188 | 21 | 741 | ||||
| KHE160-41/6-Ⅱ | 0.6 | 87 | 41 | 1448 | 160 | DN80 | 6200 | 3460x1930x2260 |
| KHE160-38/7-Ⅱ | 0.7 | 101 | 38 | 1342 | ||||
| KHE160-34/8-Ⅱ | 0.8 | 116 | 34 | 1200 | ||||
| KHE160-31/10-Ⅱ | 1 | 145 | 31 | 1094 | ||||
| KHE160-27/13-Ⅱ | 1.3 | 188 | 27 | 953 | ||||
| KHE185-44/6-Ⅱ | 0.6 | 87 | 44 | 1553 | 185 | DN100 | 6500 | 3460x1930x2260 |
| KHE185-44/7-Ⅱ | 0.7 | 101 | 44 | 1553 | DN80 | 6300 | 3460x1930x2260 | |
| KHE185-40/8-Ⅱ | 0.8 | 116 | 40 | 1412 | ||||
| KHE185-34/10-Ⅱ | 1 | 145 | 34 | 1200 | ||||
| KHE185-31/13-Ⅱ | 1.3 | 188 | 31 | 1094 | ||||
| KHE200-44/8-Ⅱ | 0.8 | 116 | 41 | 1553 | 200 | DN80 | 6400 | 3460x1930x2260 |
| KHE200-40/10-Ⅱ | 1 | 145 | 40 | 1412 | ||||
| KHE200-33/13-Ⅱ | 1.3 | 188 | 33 | 1165 | ||||
| KHE200-48/6-Ⅱ | 0.6 | 87 | 48 | 1695 | 200 | DN100 | 6500 | 3460x1930x2260 |
| KHE200-47/7-Ⅱ | 0.7 | 101 | 47 | 1659 | ||||
| KHE220-55/6-Ⅱ | 0.6 | 87 | 55 | 1942 | 220 | DN100 | 6850 | 3460x1930x2260 |
| KHE220-53/7-Ⅱ | 0.7 | 101 | 53 | 1871 | ||||
| KHE220-47/8-Ⅱ | 0.8 | 116 | 47 | 1659 | ||||
| KHE220-43/10-Ⅱ | 1 | 145 | 43 | 1518 | ||||
| KHE220-38/13-Ⅱ | 1.3 | 188 | 37.8 | 1336 | ||||
| KHE250-60/6-Ⅱ | 0.6 | 87 | 60 | 2118 | 250 | DN125 | 9500 | 4050x2280x2400 |
| KHE250-57/7-Ⅱ | 0.7 | 101 | 57 | 2012 | ||||
| KHE250-55/8-Ⅱ | 0.8 | 116 | 55 | 1942 | DN100 | 9100 | 3860x2160x2400 | |
| KHE250-47/10-Ⅱ | 1 | 145 | 47 | 1659 | ||||
| KHE250-43/13-Ⅱ | 1.3 | 188 | 43 | 1518 | ||||
| KHE280-67/6-Ⅱ | 0.6 | 87 | 67 | 2366 | 280 | DN125 | 8500 | 3530x2280x2270 |
| KHE280-63/7-Ⅱ | 0.7 | 101 | 63 | 2224 | ||||
| KHE280-60/8-Ⅱ | 0.8 | 116 | 59.8 | 2113 | ||||
| KHE280-54/10-Ⅱ | 1 | 145 | 54 | 1898 | ||||
| KHE280-46/13-Ⅱ | 1.3 | 188 | 46 | 1624 | ||||
| KHE315-70/8-Ⅱ | 0.8 | 116 | 70 | 2472 | 315 | DN125 | 8600 | 3530x2280x2270 |
| KHE315-62/10-Ⅱ | 1 | 145 | 62 | 2189 | ||||
| KHE315-56/13-Ⅱ | 1.3 | 188 | 56 | 1977 | ||||
| KHE355-70/8-Ⅱ | 0.8 | 116 | 69.2 | 2443 | 355 | DN125 | 8750 | 3530x2280x2270 |
